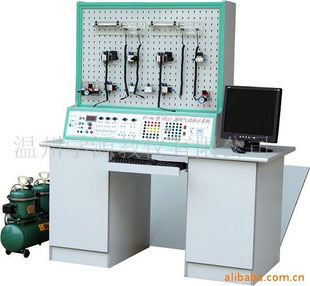

xy-06型(PLC)透明氣動傳動演示系統 專利申請?zhí)?200620131203.5 本系統采用透明氣動元件和液奪.組合插式結構.活動油路接頭.通用電氣線路。利用附配工具材料,參照實驗指導書,可以方便的進行各種常用氣動傳動的控制.實驗及測試?？梢宰寣W(xué)生了解油路及氣動元件內部的原理,結構及工作過程,本產品適應大專院校.技校.職業學校,是氣動傳動教學的必備儀器.一、本產品插腳和底座是國家專利，
做任何實驗每個配備件不會松動與脫落。實驗臺裝件底板采用
2MM厚度鋁板，用數控沖床成型。
Major Technology Parameters:
External Dimensions of Laboratory Furniture: 1500mm×700mm×760mm
Dimensions of Bracket: 1100mm×400mm×920mm
Programmable Logic Controller (PLC): Mitsubishi Mainframe (FX1S-14MR, Relay Output)
Electrical Source: output: AC220V Input: DC24V AC24V
1. Nominal Voltage: 220V (50Hz)
2. Electric Motor: YET-80102
Nominal Current: 0.8A
3. Nominal Power: 150W Nominal Voltage: DC220V
4. Range of Speed Regulation: 0~1200rpm
5. Gear Pump: Nominal Speed: 1450rpm
Operating Pressure 0—0.8Mpa
Flow Rate: 10L /main
When the distance between gear pump and hydraulic is 1.5 meter, the noise lower than 58 Db.
Experiment Items:
1、Directional CircuitWith Hand Operated Directional Control Valves
2、O-Type & M-TypeCentre Bypass Valve of Closed Circuit
3、Hydraulic Check Valve of Closed Circuit
4、Pressure Control Circuit
5、Two Step Pressure Control
6、Pressure Reducing Circuit With Pressure Reducing Valve
7、Pressure Increasing Circuit With Increasing Pressure Cylinder
8、H-Type Directional Control Valve of Unloading Circuit
9、Meter-in and Speed Regulation Circuit with Throttle Valve
10、Meter-out and Speed Regulation Circuit with Throttle Valve
11、Flow Control Circuit with Speed Regulating Gear Pump
12、Speed Control Circuit both with Speed control Gear Pump and Speed Control Valve
13、Speed Switch Circuit Contact with Flow Valve
14、Secondary Feed Circuit (Speed Regulating Valve in Series and Parallel Connection)
15、Sequence Circuit with Sequence Valve 17、Sequence Circuit with Travel Switch
16、Sequence Circuit with Pressure Relay 18、Sequence Circuit with Stroke Valve
